Austin Hughes InfraCool :: Rack Airflow Booster - Door Mount Fan Panel

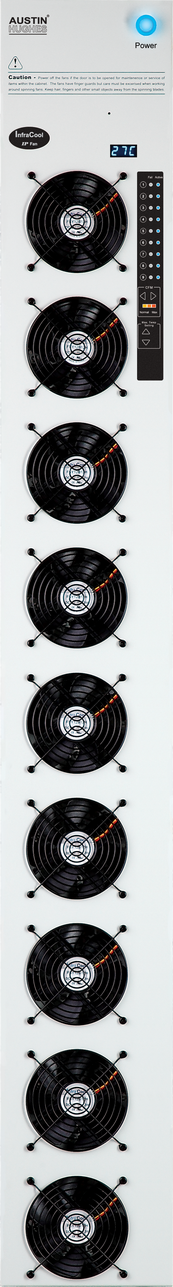

Basic Fan unit - 33U Door Mount Fan Panel
1. AUSTIN HUGHES Basic 33U Vertical Door Mount Fan Panel (CFM 972)

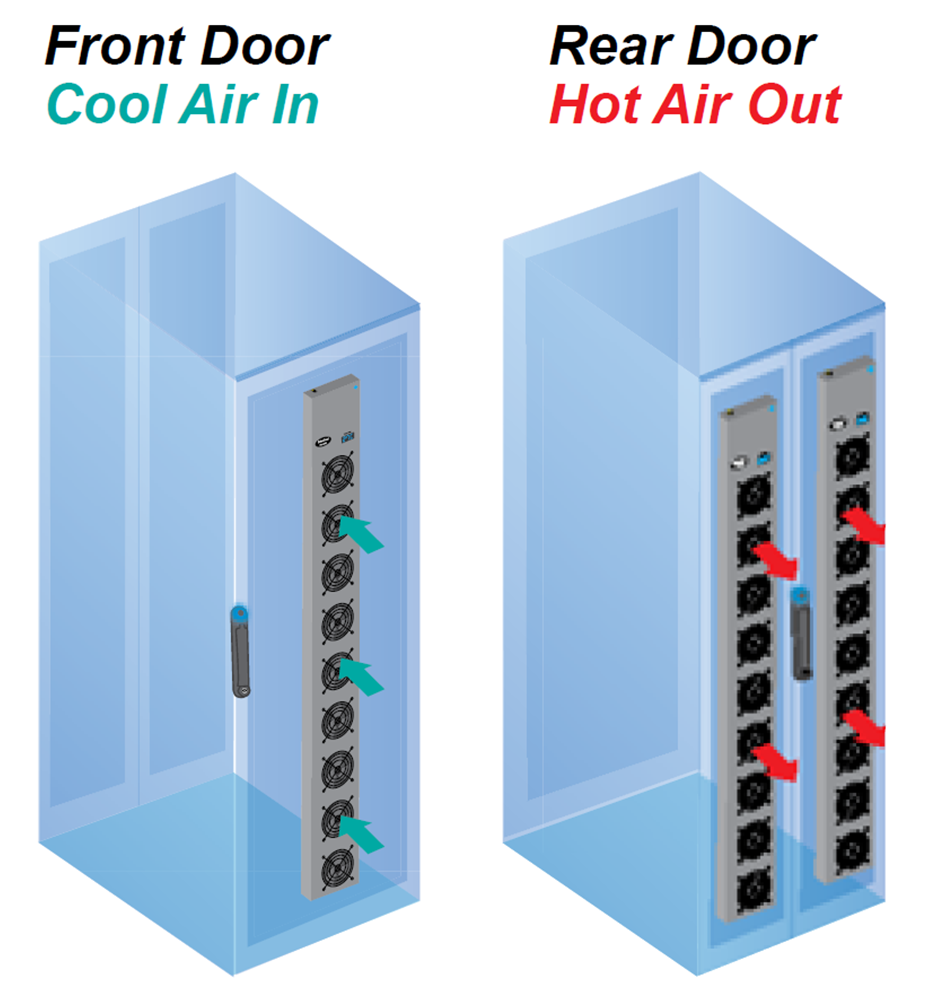

- Extract airflow - Exhaust air out from rack, Rear door outside installation
- Intake airflow - Cool air in from aisle, Front door inside installation
- Part No. : F-33.9A
2. AUSTIN HUGHES Basic 33U Vertical Door Mount Fan Panel (CFM 972)
- Intake airflow - Cool air in from aisle, Front door outside installation
- Extract airflow - Exhaust air out from rack, Rear door inside installation
- Part No. : F-33.9B
- Include :
- bundle with temp. sensor x 1
- bundle with clear polycarbonate plastic film x 1
- power input: auto-sensing
- Benefits :
- Easy installation with common tools
- Thin & light weight design only 4.6 kgs / 10.1 lbs
- Designed for low noise & high airflow performance
- Improves extraction of heat from high density rack
- External temperature sensor x 1
- Front temperature LED
- Auto-sensing 110V to 220VAC power input
Remote Fan Unit (Slave) - 33U Door Mount Fan Panel
1. AUSTIN HUGHES Remote 33U Vertical Door Mount Fan Panel (CFM 972)
- Extract airflow - Exhaust air out from rack, Rear door outside installation
- Intake airflow - Cool air in from aisle, Front door inside installation
- Part No. : RF-33.9A
2. AUSTIN HUGHES Remote 33U Vertical Door Mount Fan Panel (CFM 972)
- Intake airflow - Cool air in from aisle, Front door outside installation
- Extract airflow - Exhaust air out from rack, Rear door inside installation
- Part No. : RF-33.9B
- Benefits
- Easy installation with common tools
- Thin & light weight design only 5 kgs / 11 lbs
- Designed for low noise & high airflow performance
- Improves extraction of heat from high density rack
- Remote Fan Unit (Slave) Daisy chain : 2nd - 16th level
- Cascade ports for daisy chain up to 16 levels via Cat6 cable
- 1 x intelligent master fan unit allows access to 16 fan unit levels over internet
- Free ICM-02 management software remote access up to 480 fan units
- Auto & manual CFM setting reduces power consumption
- 1 x bundled temp. sensor with 2M wire
- Temperature sensing technology adjusts the fan speeds accordingly
- Unit or individual fan on / off ( remote or local )
Master IP Fan Unit - 33U Door Mount Fan Panel
1. AUSTIN HUGHES Master IP 33U Vertical Door Mount Fan Panel (CFM 972)
- Extract airflow - Exhaust air out from rack, Rear door outside installation
- Intake airflow - Cool air in from aisle, Front door inside installation
- Part No. : MRF-33.9A
2. AUSTIN HUGHES Master IP 33U Vertical Door Mount Fan Panel (CFM 972)
- Intake airflow - Cool air in from aisle, Front door outside installation
- Extract airflow - Exhaust air out from rack, Rear door inside installation
- Part No. : MRF-33.9B
- Include :
- daisy chain level x 16
- bundle with temp. sensor x 1 ( IG-T01-2M )
- free management software ( ICM-03 )
- bundle with clear polycarbonate plastic film x 1
- power input: auto-sensing
- Benefits :
- Easy installation with common tools
- Thin & light weight design only 5 kgs / 11 lbs
- Designed for low noise & high airflow performance
- Improves extraction of heat from high density rack
- Master IP Fan Unit Daisy chain : 1st level
- Cascade ports for daisy chain up to 16 levels via Cat6 cable
- 1 x intelligent master fan unit allows access to 16 fan unit levels over internet
- Free ICM-02 management software remote access up to 480 fan units
- Auto & manual CFM setting reduces power consumption
- 1 x bundled temp. sensor with 2M wire
- Temperature sensing technology adjusts the fan speeds accordingly
- Unit or individual fan on / off ( remote or local )
