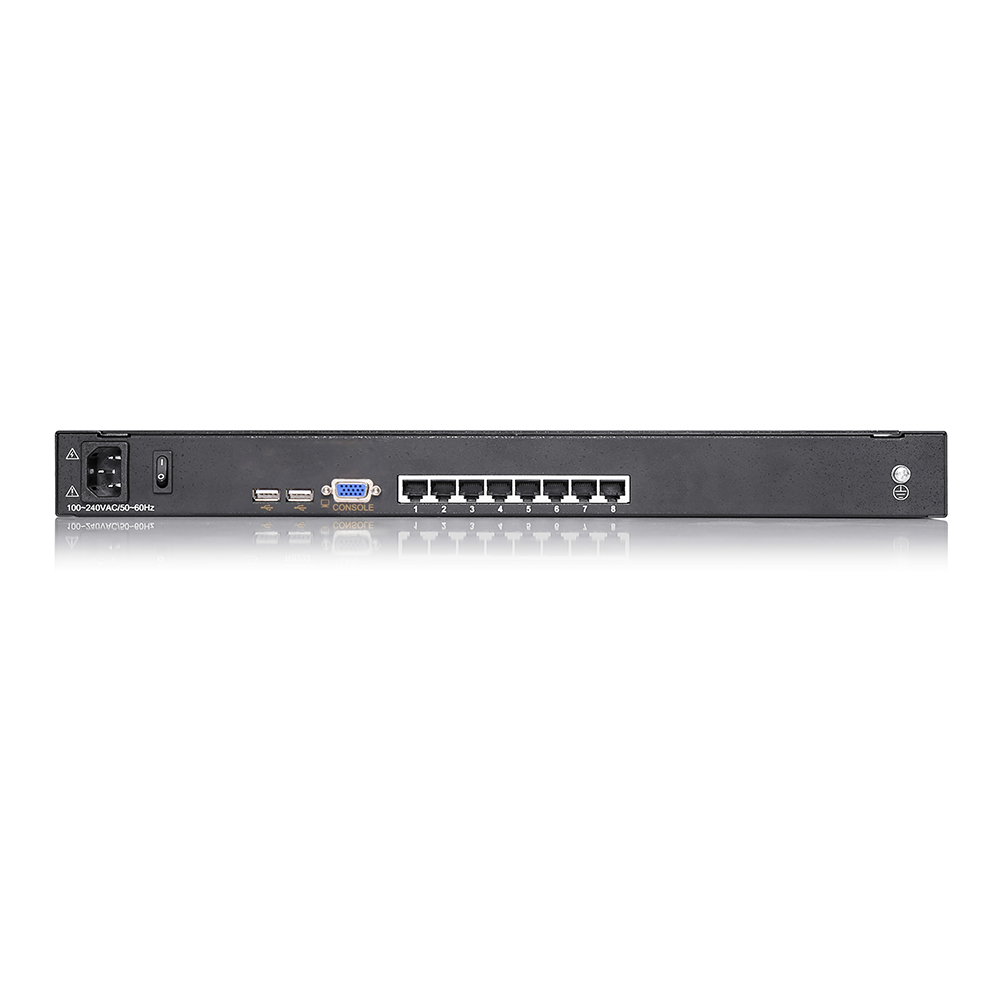

Kinan Rackmounted Cat5 KVM Switch
Rack Mount 8 port USB CAT5 KVM Switch
Model No.: KC2108
Rack-Mountable 8 Port CAT5 1920 x 1080
Rack Mount 16 port USB CAT5 KVM Switch
Model No.: KC2116
Rack-Mountable 16 Port CAT5 1920 x 1080
Overview
The KC2108/ KC2116 rack mount CAT5 KVM switch allows access and control up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 256/512 computers can be controlled from a single keyboard-mouse console by cascading to another 31 additional switches.
The KC2108/ KC2116 KVM switch supports resolution up to 1920x1080@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).
The KVM switch supports USB connections for the console and computers, RJ-45 connectors and CAT 5e/6 cable are used to link to the computers
Features
Hardware Features
1U design-Occupies only 1U of the rack space
Standard RJ-45 connector-Connect to a server or KVM switch via a standard RJ-45 connector with CAT 5e/6 cable
Fit for standard 19” rack mounting
Support computers with USB keyboard and mouse
Management
Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Auto scan feature for monitoring user-selected computer
Broadcast mode--operations simultaneously performed on all selected computers
Hot pluggable --add or remove computers without having to power down the switch
Quickly select your computer by naming the server or inputting SN number of the server
High Resolution
Resolution is up to 1920x1080@60Hz
Cascading Connection
By cascading up to another 31 switches, as many as 256/512 servers can be controlled from a single console (Compatible Kinan Rack KVM Switches: KC2116, KC2132)
Security
Two level password security--only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each
Wide Compatibility
Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
