Kinan - Single Rail 17" LCD KVM Switch - 8x Cat5 Ports, Include 8x VGA KVM Dongle

Overview

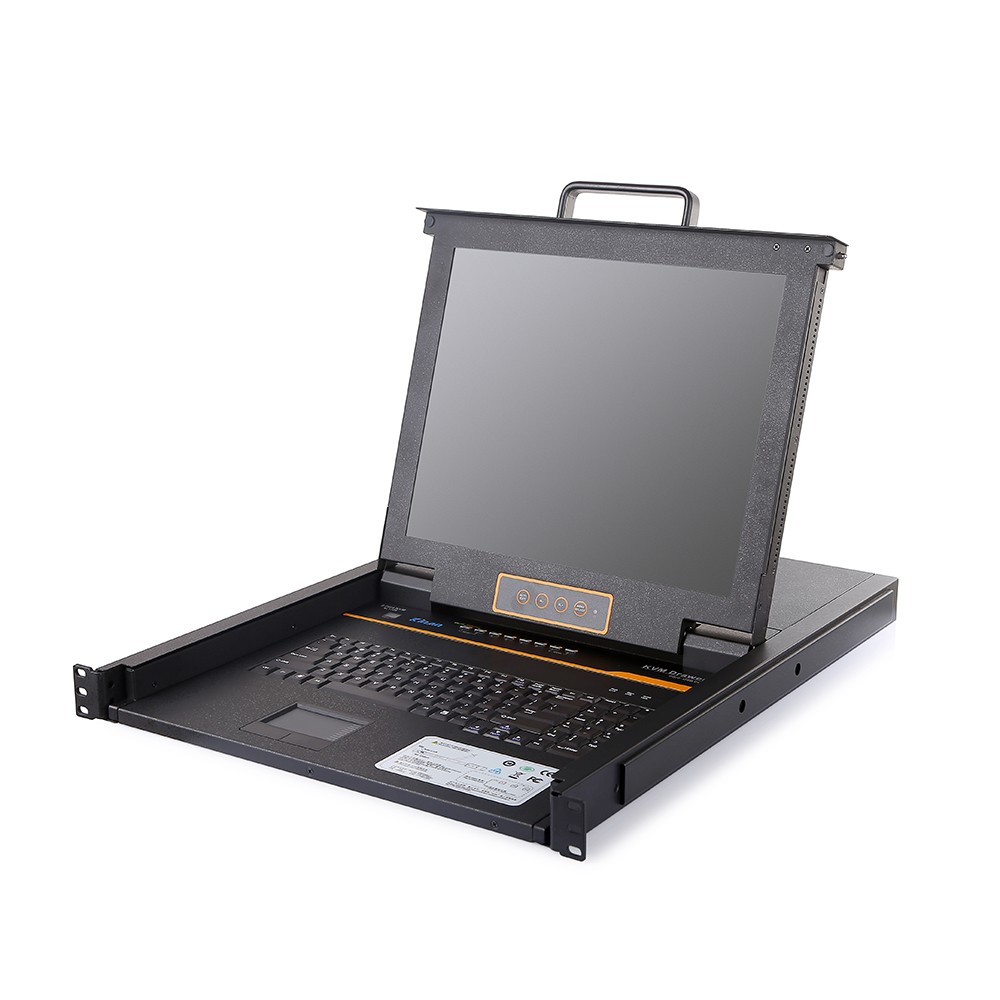

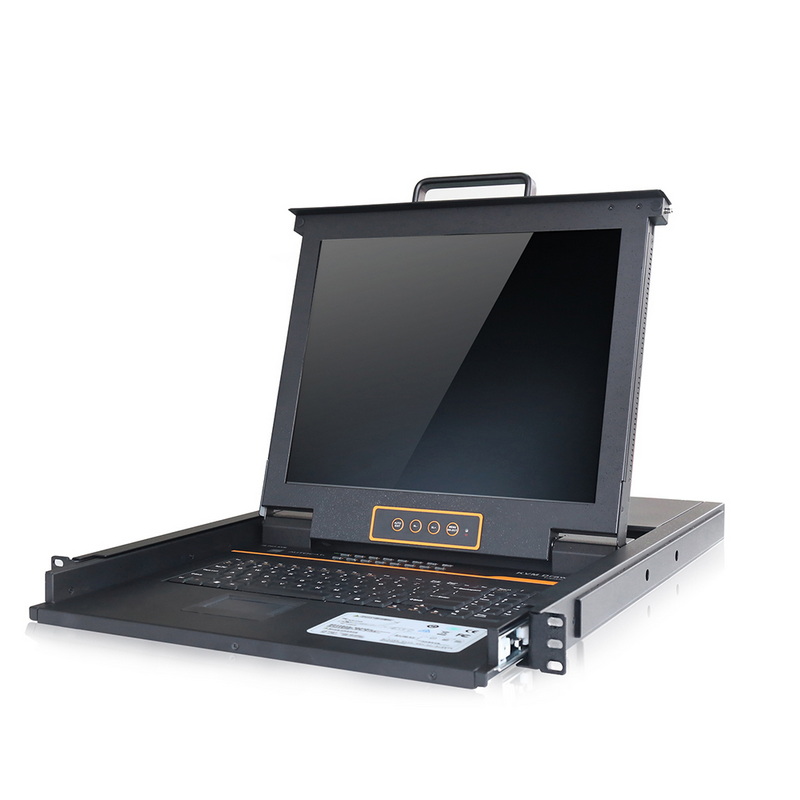

Kinan’s LC1708/LC1716 keyboard mouse monitor switch integrates a 17” LCD monitor, a keyboard/touchpad and a Cat5 KVM switch in a 1U rack mount housing.

The LC1708/ LC1716 allows access and control up to 8 computers from a single console (keyboard, mouse, and monitor). When cascading to another 31 KVM Switches, a single LC1708/ LC1716 KVM console can control up to 256/512 computers.

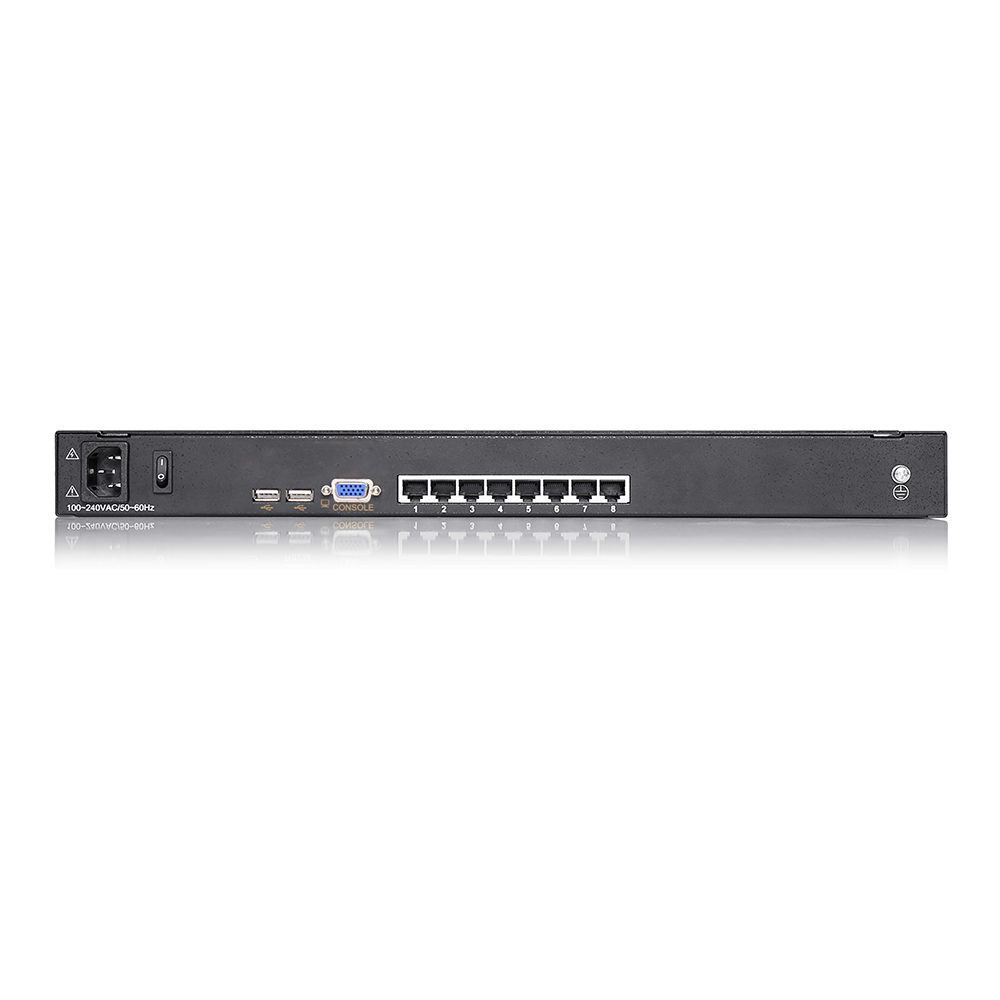

The LC1708/ LC1716 has a built-in 17” LCD monitor that supports resolution up to 1280x1024@60Hz. For added convenience, two USB ports and one VGA port are included in the rear of the kvm unit to allow for connection of keyboard/mouse and external display.

With the LC1708/ LC1716, you can switch easily between computers by front panel pushbuttons, OSD (on-screen display) or keyboard hotkey command. To enhance security, the LC1708/ LC1716 provides two-level password security which prevents unauthorized users to viewing and controlling the connected computers.

With RJ-45 connectors and Cat5e/6 cables connected to computers, the LC1708/ LC1716 helps extend the distance to the servers up to 100m.

Features

Hardware Features

Integrated kvm rack console with 17” LCD display, keyboard/touchpad and 8/16 port Cat5 KVM switch in a 1U height console

Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables

LCD module can be opened up to 108 degrees to provide a comfortable viewing angle

Support computers with USB keyboard and mouse

Management

Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)

Auto scan feature for monitoring user-selected computer

Broadcast mode--operations simultaneously performed on all selected computers

Hot pluggable --add or remove computers without having to power down the switch

Quickly select your computer by naming the server or inputting SN number of the server

On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator

High Resolution

17” TFT LCD monitor with highlight, high definition and high resolution

Resolution is up to 1280 x 1024 @60Hz

Cascading Connection

By cascading up to another 31 switches, as many as 256/512 servers can be controlled from a single console (Compatible Kinan Rack KVM Switches: KC2108, KC2116, KC2132)

Security

Two level password security--only authorized users view and control computers

Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

Touchpad with scroll wheel - Eliminates the need for a separate, external mouse

Keyboard

Multi-language support--English, Russian, German, French, Spanish, and Korean etc.

Full size 99 keys keyboard with integrated number pad

Wide Compatibility

Multiplatform Support-Compatible with Windows, Sun, Unix and Linux

Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
