KINAN - DUAL RAIL VGA LCD KVM Switch
17” Rack Mount Dual Rail 8 Port VGA LCD KVM Switch
Model No.: DL1708
Dual Rail 17” 8 Port VGA 1280 x 1024
17” Rack Mount Dual Rail 16 Port VGA LCD KVM Switch
Model No.: DL1716
Dual Rail 17” 16 Port VGA 1280 x 1024
Overview

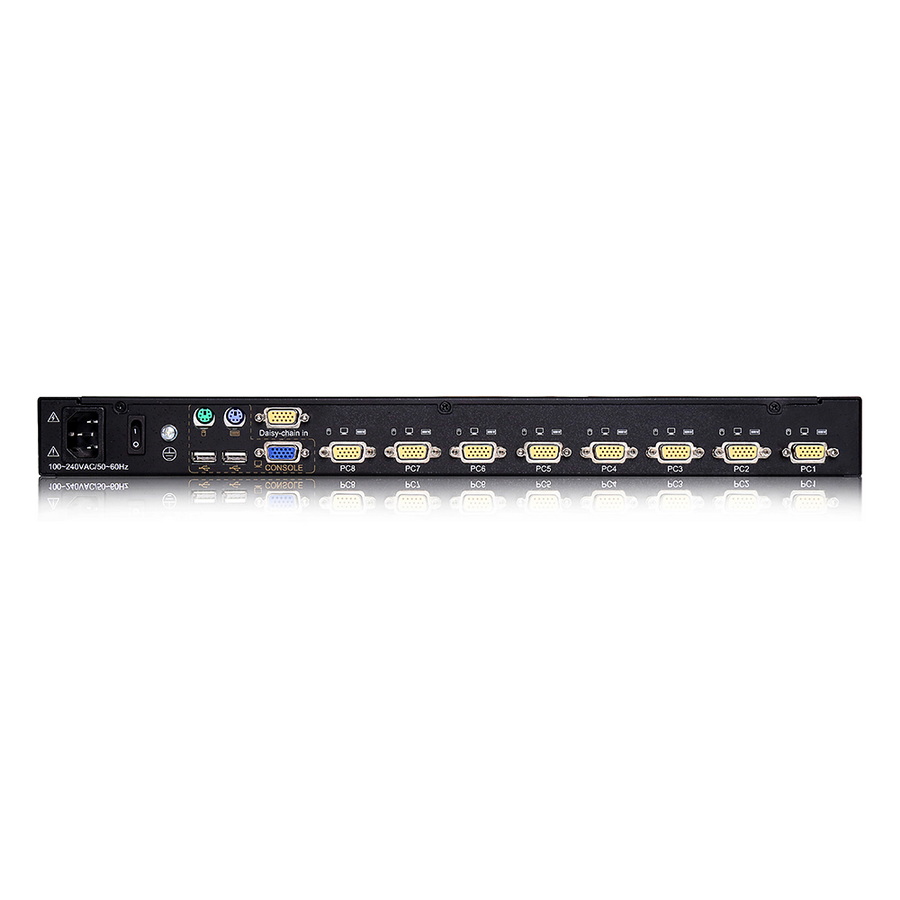

The DL1708/DL17016 dual rail LCD KVM Switch is a control unit that allows access and control up to 8/16 computers from a single console. An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console.
The 17" LCD monitor and keyboard/touch pad modules slide independently of each other. By cascading 31 additional switches, as many as 256/512 computers can be controlled from a single keyboard-monitor-mouse console.
The DL1708/DL17016 LCD KVM Switch has a built-in LCD monitor that supports resolution up to 1280x1024@60Hz.
Features
Hardware Features
Integrated KVM Console with 17” LCD monitor, keyboard and touchpad in a dual rail housing
Standard VGA connection-Connect to a server or computer via standard VGA connectors
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
Support computers with USB and PS/2 keyboard and mouse
The LCD monitor and keyboard/touch pad modules slide independently of each other
Dual Rail Design
The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack, allowing administrators to easily manage computer.
Management
Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Auto scan feature for monitoring user-selected computer
Broadcast mode--operations simultaneously performed on all selected computers
Hot pluggable --add or remove computers without having to power down the switch
Quickly select your computer by naming the server or inputting SN number of the server
On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu
High Resolution
17” TFT LCD monitor with highlight, high definition and high resolution
Resolution is up to 1280 x 1024 60Hz
Daisy-Chain Connection
By daisy-chaining up to another 31 switches, as many as 256/512 servers can be controlled from a single console (Compatible Kinan Rack KVM Switches: XM0108, XM0116, XU0108, XU0116)
Security
Two level password security--only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each
High Performance Touchpad
Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
Keyboard
Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
Full size 99 keys keyboard with integrated number pad
Wide Compatibility
Multiplatform Support-Compatible with Windows, Linux, Mac and Sun
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
