KVM Extender
HDMI FHD Digital KVM Extender over Fiber/Cat5
Model No.: KFH162S
HDMI 4K@30Hz Over Fiber/Cat5
USB HDMI over Fiber KVM Extender-10km
Model No.: KFH101S
HDMI over fiber 4K@60Hz 10km
USB DVI OVER CAT5E & CAT6 KVM EXTENDER
Model No.: KED101S
DVI over Cat5 1920x1200 100m
KVM Extender
HDMI FHD Digital KVM Extender over Fiber/Cat5
Model No.: KFH162S
HDMI 4K@30Hz Over Fiber/Cat5
Overview
The KFH162S HDMI digital KVM extender delivers FHD HDMI video, USB2.0, keyboard, mouse and stereo audio signals up to a remote desk over fiber optic cable or Cat5 cable.
A complete set of KFH162S including Transmitter (KFH162S-TX) and Receiver (KFH162S-RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, mouse, audio player and other USB devices.
The KFH162S supports signal transmission over fiber optic cable or Cat5 cable, it supports single-mode and multi-mode optical fiber, the maximum transmission distance of single mode is 10km, for multimode the transmission distance is up to 600m. If you connect the KFH162S-TX and KFH162S-RX with a Cat5 cable, the transmitting distance is up to 150m. It supports the transmission of 1 channel high-quality HDMI signals and has a wide range of applications.
Features
Extension Distance
Support transmitting distance up to 150m over Cat5 cable.
Transmitting distance is up 10km over single mode fiber, 600m over multimode fiber.
High Resolution
Uncompressed HDMI FHD video, resolution up to 3840x2160@30Hz.
FHD digital video, real time control
Extends FHD HDMI video, USB2.0, keyboard, mouse and stereo audio signals up to a remote desk over fiber optic cable or Cat5 cable.
Supports USB 2.0
Supports a wide range of USB peripherals, such as encrypted U disk, face recognition and other USB devices, connect via the built-in 4 USB hub
High quality analog audio
Bidirectional Analog Audio: line in/out with microphone and headphone support
Supports connect to a network switch
Supports connect to a network switch (1000M)
Supports point-to-point dial-up connection
KVM Extender
USB HDMI over Fiber KVM Extender-10km
Model No.: KFH101S
HDMI over fiber 4K@60Hz 10km
Overview
The KFH101S HDMI digital KVM extender delivers FHD HDMI video, USB, RS232, and stereo audio signals up to 10km over fiber optic cable.
A complete set of KFH101S including Transmitter (KFH101S-TX) and Receiver (KFH101S-RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, audio player and other USB devices.
The KFH101S support single-mode and multi-mode optical fiber, the maximum transmission distance of single mode is 10km, and the transmission distance of multimode is up to 300m. It supports the transmission of 2 channel high-quality HDMI signals and has a wide range of applications.
Features
Extension Distance
The maximum transmission distance is vary depending on the fiber type, the maximum transmission distance of single mode is 10km, and the transmission distance of multimode is up to 300m.
High Resolution
Uncompressed HDMI FHD video, resolution up to 4K@60Hz (YCbCr 4:2:0)
Uncompressed digital video, real time control
Extends uncompressed HDMI video, audio, USB, RS-232 signals over fiber optic cable
Transparent USB 2.0
Support USB 2.0 – Supports a wide range of USB peripherals, such as encrypted U disk, face recognition and other USB devices.
Support USB Hub, the number of USB ports can be expanded through USB Hub
High quality analog audio
Support individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT
Plug and Play
Easy to install, no software required - connecting cables to the devices is all it takes
KVM Extender

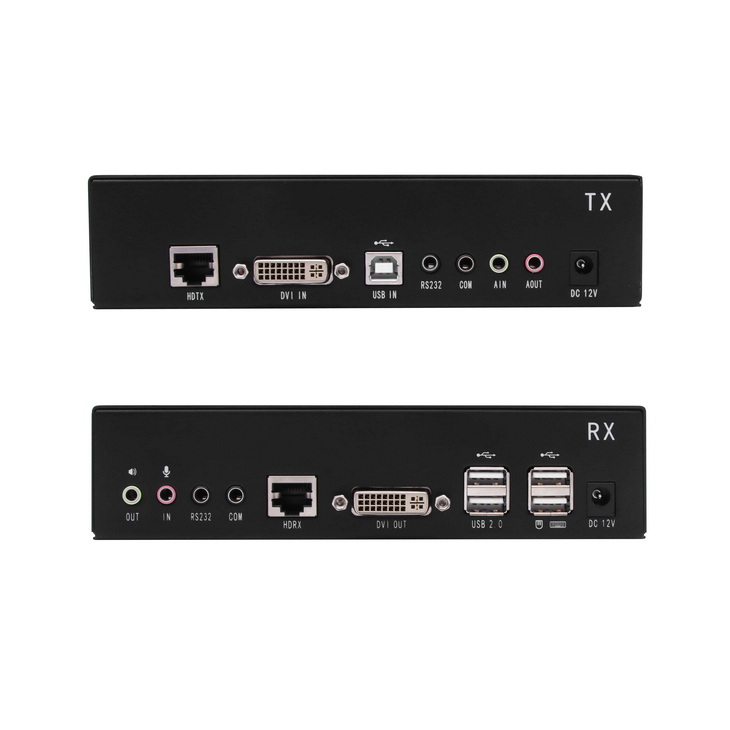

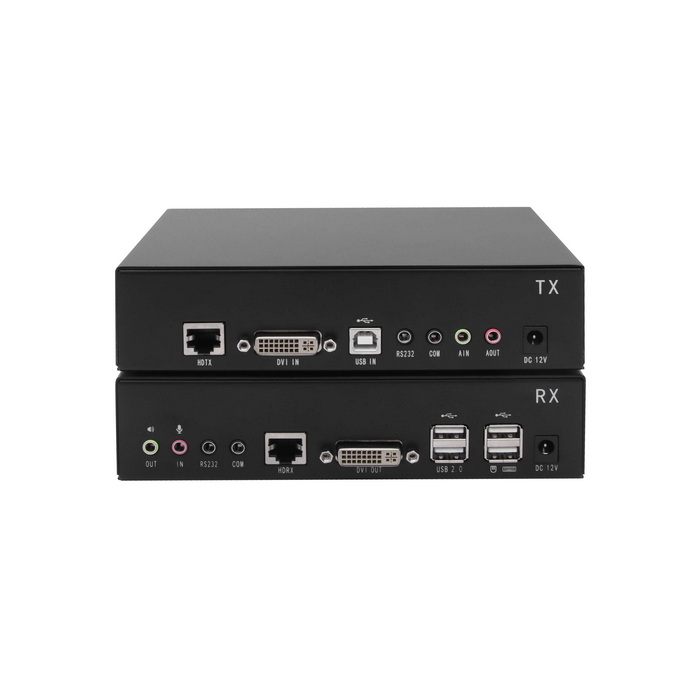

USB DVI OVER CAT5E & CAT6 KVM EXTENDER
Model No.: KED101S
DVI over Cat5 1920x1200 100m
Overview
Kinan’s KED101S USB DVI HDBaseT™ KVM extender integrates the latest HDBaseT™ technology and delivers HD DVI video, USB and stereo audio signals up to 100m via single Cat5 / Cat6 cable.
A complete set of KED101S including Transmitter (KED101S-TX) and Receiver (KED101S-RX). The Transmitter is connected to a computer or server, and the receiver is connected to a display, keyboard, audio player and other USB devices.
The KED101S enables remote high-speed access to a single computer at HD display resolution, while improving workplace ergonomics and separating employees from a noisy working environment.
Features
Extension Distance
Allows access to your computer from a remote console up to 100m
High Resolution
Uncompressed DVI HD video, resolution up to 1920 x 1200 @60Hz
Uncompressed DVI HD video, resolution up to 1920 x 1200 @60Hz
Uncompressed video extension with zero loss and in real-time
Transparent USB 2.0
Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers, it provides 2 USB hub on the receiver.
High quality analog audio
Support individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT
Single Cat5 Extension Cable
Extends video, audio, USB, RS-232 signals via a single Cat5e / Cat 6 cable
Plug and Play
Easy to install, no software required - connecting cables to the devices is all it takes
