KINAN - SINGLE RAIL VGA LCD KVM Switch
Model No.: LS2701
Single Rail 17” 1 Port USB VGA LCD KVM Console
17” 1 Port VGA 1280 x 1024
Model No.: XL1708
Single Rail 17” 8 Port USB VGA LCD KVM Console
17” 8 Port VGA 1280 x 1024
Model No.: XL1716
Single Rail 17” 16 Port USB VGA LCD KVM Console
17” 16 Port VGA 1280 x 1024
Model No.: LS1901
Single Rail 19” 1 Port USB VGA LCD KVM Console
19” 1 Port VGA 1280 x 1024
Model No.: XL1908
Single Rail 19” 8 Port USB VGA LCD KVM Console
19” 8 Port VGA 1280 x 1024
Model No.: XL1916
Single Rail 19” 16 Port USB VGA LCD KVM Console
19” 16 Port VGA 1280 x 1024
Overview
The Kinan's XL1708/XL1716/XL1908/XL1916 LCD KVM Switch features an integrated 17"/19" LCD screen, keyboard and touchpad in a single console that occupies only 1U of rack space. It allows access and control up to 8 computers from a single console (keyboard, mouse and monitor). The number of connected computers can be increased up to 256 by daisy-chaining up to 31 XM0108 KVM Switches.
The XL1708/XL1716/XL1908/XL1916 KVM Console has a built-in LCD monitor that supports resolution up to 1280x1024@60Hz. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).

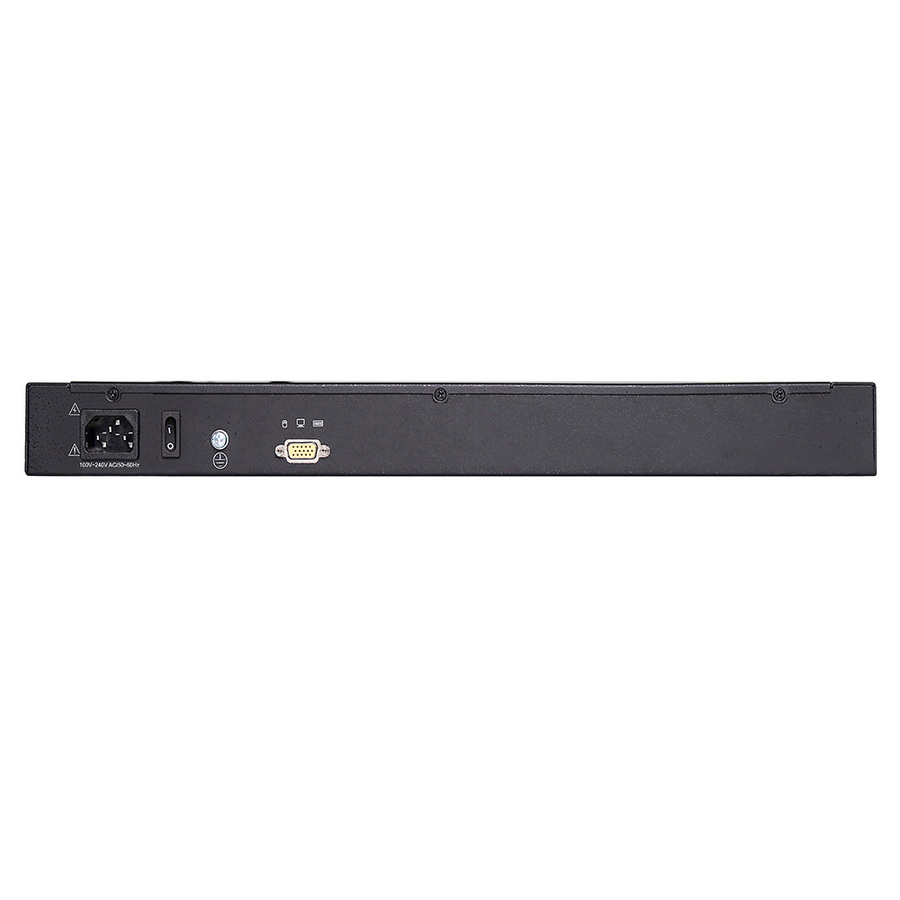

The LCD KVM switch supports USB connection for the computers. An extra HDB15 port allows an additional VGA monitor to be connected.
Features
Hardware Features
Integrated KVM Console with 17”/19" LCD monitor, keyboard/touchpad and 8 port KVM switch in a 1U height console
Standard VGA connection-Connect to a server or computer via standard VGA connectors
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
Support external USB & PS/2 keyboard and mouse
Management
Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Auto scan feature for monitoring user-selected computer
Broadcast mode--operations simultaneously performed on all selected computers
Hot pluggable --add or remove computers without having to power down the switch
Quickly select your computer by naming the server or inputting SN number of the server
On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu
High Resolution
17"/19" TFT LCD KVM monitor with highlight, high definition and high resolution
Resolution is up to 1280 x 1024 @60Hz
Daisy-Chain Connection
By daisy-chaining up to another 31 switches, as many as 256 servers can be controlled from a single console (Compatible Kinan Rack KVM Switches: XM0108, XM0116, XU0108, XU0116)
Security
Two level password security--only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each
High Performance Touchpad
Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
Keyboard
Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
Full size 99 keys keyboard with integrated number pad
Wide Compatibility
Multiplatform Support-Compatible with Windows, Linux , Mac and Sun
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
Kinan Single Rail VGA LCD KVM Switch
