Kinan Rackmounted VGA KVM Switch
Rack Mount 8 port USB VGA KVM Switch
Model No.: XU0108
Rack-Mountable 8 port VGA 2048x1536

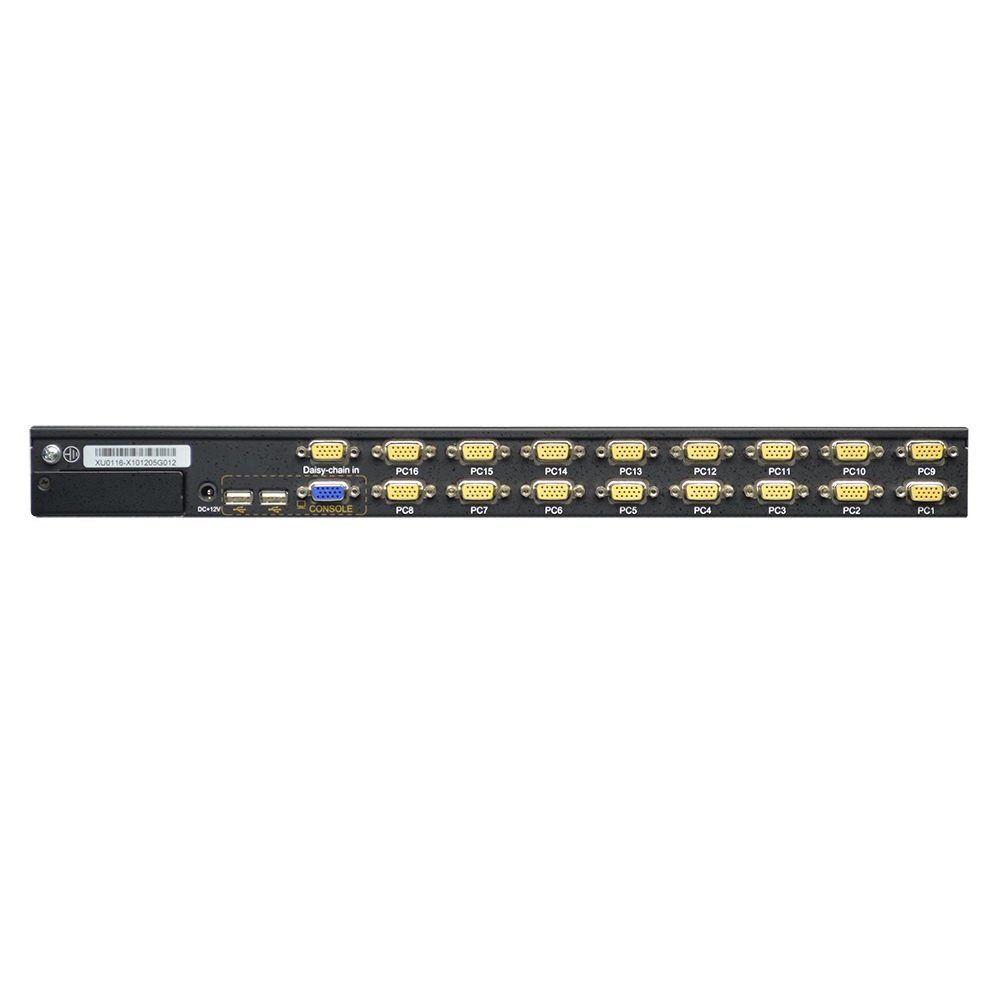

Rack Mount 16 port USB VGA KVM Switch
Model No.: XU0116
Rack-Mountable 16 port VGA 2048x1536
Overview
The XU0108/ XU0116 rack mount USB KVM switch allows access and control up to 8/16 computers from a single console (keyboard, mouse, and monitor). As many as 256/512 computers can be controlled from a single keyboard-mouse console by cascading to another 31 additional switches.
The XU0108/ XU0116 KVM switch supports resolution up to 2048×1536; DDC2B. Switching between computers can be easily accomplished by front panel pushbuttons, keyboard hotkey combination or on-screen-display (OSD).
The KVM switch supports USB connections for the console and computers. An extra HDB15 port allows an additional VGA monitor to be connected.
Features
Hardware Features
1U design-Occupies only 1U of the rack space
Standard VGA connection-Connect to a server or computer via standard VGA connectors
Fit for standard 19” rack mounting
Support computers with USB keyboard and mouse
Management
Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Auto scan feature for monitoring user-selected computer
Broadcast mode--operations simultaneously performed on all selected computers
Hot pluggable --add or remove computers without having to power down the switch
Quickly select your computer by naming the server or inputting SN number of the server
High Resolution
Resolution is up to 2048×1536 DDC2B
Daisy-Chain Connection
By daisy-chaining up to another 31 switches, as many as 256/512 servers can be controlled from a single console (Compatible Kinan Rack KVM Switches: XM0108,XM0116, XU0116)
Security
Two level password security--only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each
Wide Compatibility
Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
