KINAN - DUAL RAIL Cat5 LCD KVM Switch
17” Rack Mount Dual Rail 8 Port Cat5 LCD KVM Switch
Model No.: DL2708
Dual Rail 17” 8 Port Cat5 1280 x 1024
17” Rack Mount Dual Rail 16 Port Cat5 LCD KVM Switch
Model No.: DL2716
Dual Rail 17” 16 Port Cat5 1280 x 1024
Overview

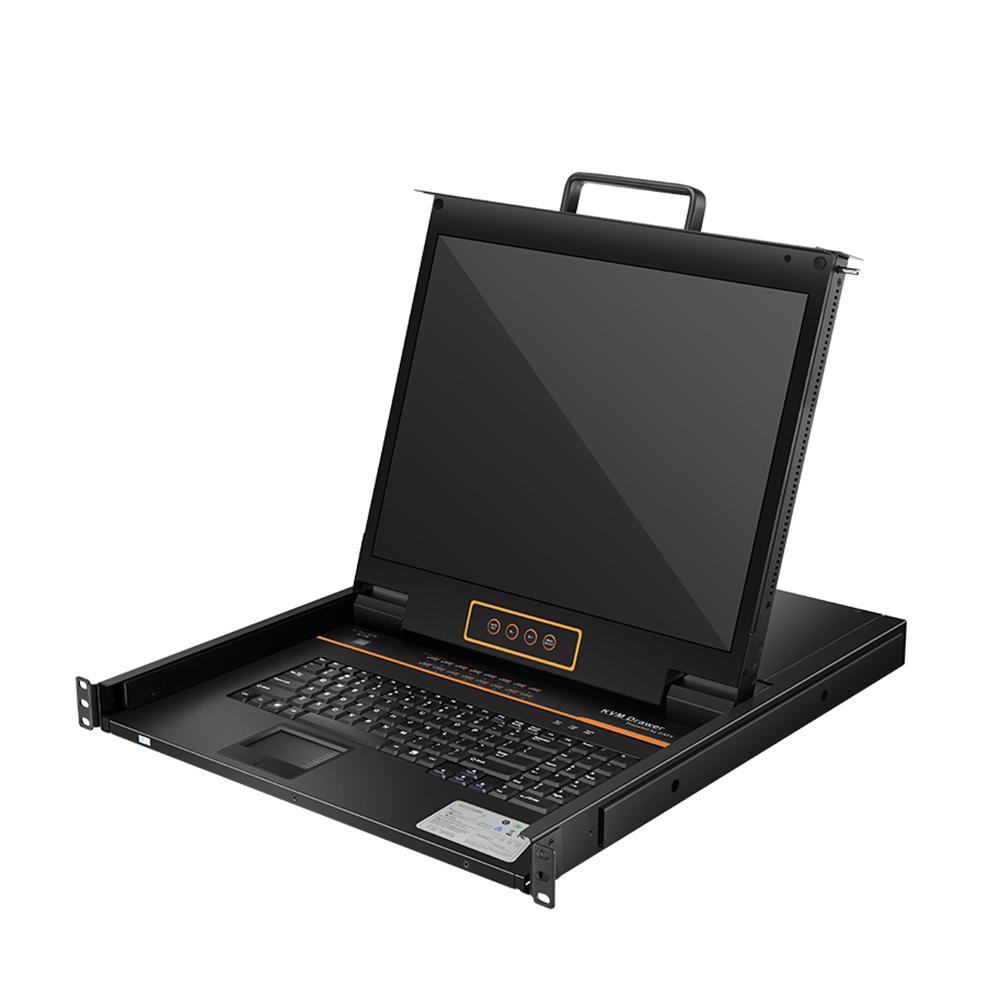

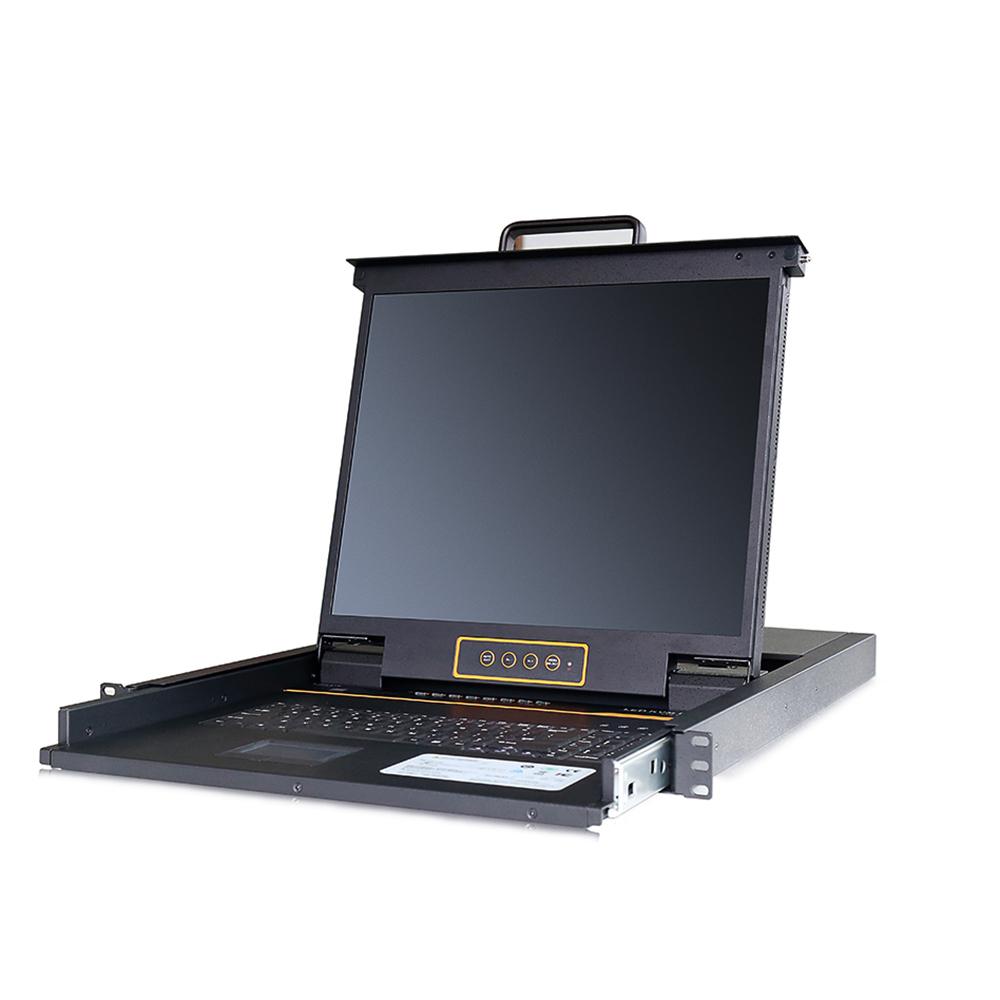

Kinan’s DL2708/DL2716 LCD CAT5 KVM integrating the LCD monitor, ultra-slim keyboard and touchpad in a 1U housing. The LCD panel and keyboard/touchpad modules slide independently of each other with the drawer design which saves much space.
The DL2708/DL2716 integrates an 8/16 port CAT5 KVM switch together with the LCD panel allowing access and control with up to 8/16 computers from a single console (keyboard, mouse, and monitor). The number of connected computers can be increased up to 256/512 by cascading up to 31 KC2108 KVM Switches. With RJ-45 interface and CAT5 cables to connect the server, the transmitting distance is up to 150m.
The DL2708/DL2716 LCD KVM Switch has a built-in LCD monitor that supports resolution up to 1280x1024@60Hz. An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console.
Features
Hardware Features
Integrated KVM Console with 17”/19" LCD monitor, keyboard and touchpad in a dual rail housing

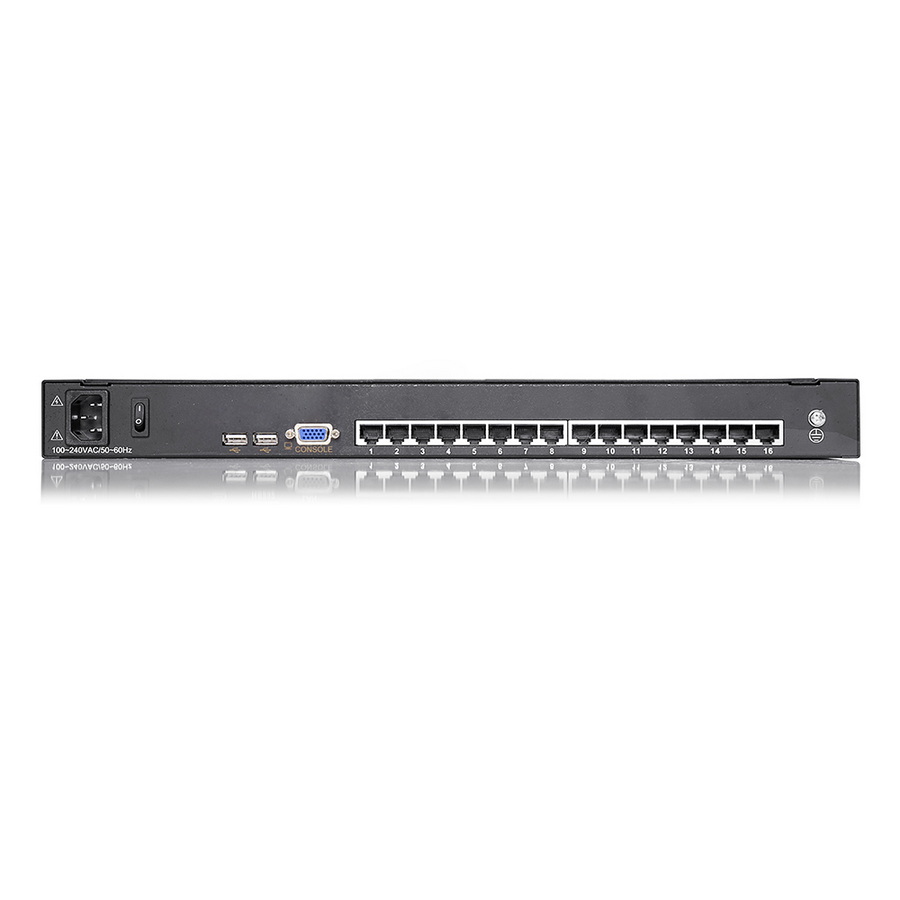

Connect to a server or computer via a standard RJ-45 connector with CAT 5e/6 cable
LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
Support computers with USB and PS/2 keyboard and mouse
The LCD monitor and keyboard/touch pad modules slide independently of each other

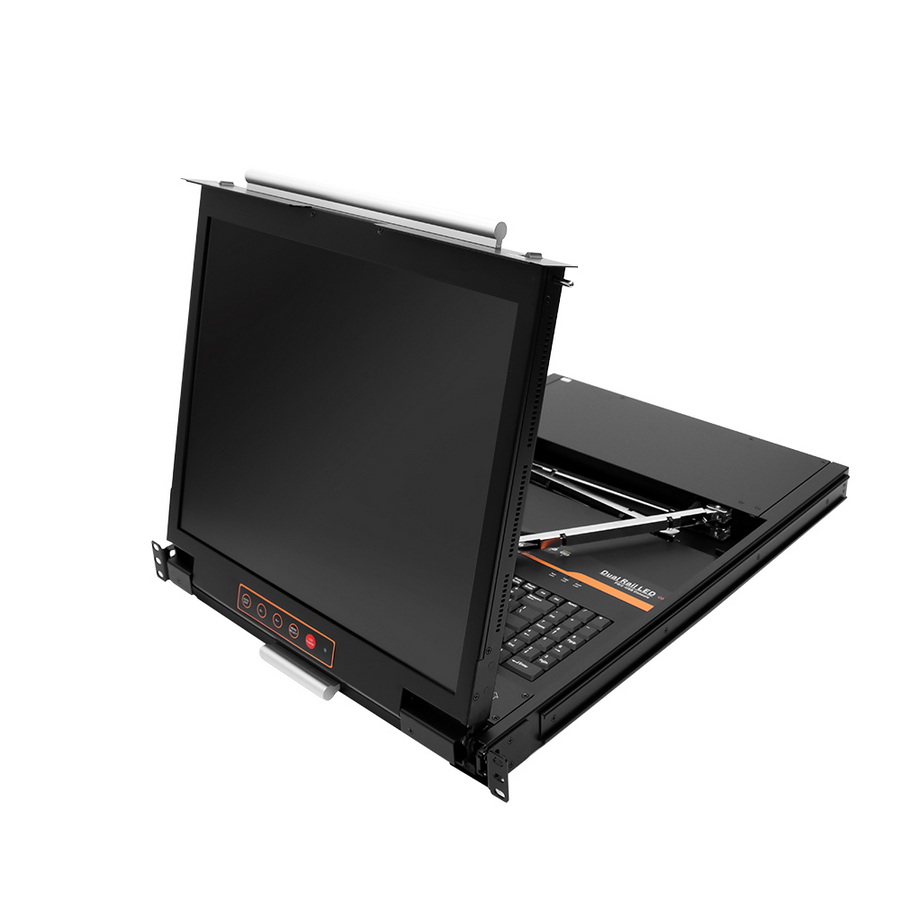

Dual Rail Design
The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack, allowing administrators to easily manage computer.
Management
Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
Auto scan feature for monitoring user-selected computer
Broadcast mode--operations simultaneously performed on all selected computers
Hot pluggable --add or remove computers without having to power down the switch
Quickly select your computer by naming the server or inputting SN number of the server
On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu
High Resolution
17”/19" TFT LCD monitor with highlight, high definition and high resolution
Resolution is up to 1280 x 1024 @60Hz
Cascading Connection
By cascading up to another 31 switches, as many as 256/512 servers can be controlled from a single console (Compatible Kinan Rack KVM Switches: KC2108, KC2116, KC2132)
Security
Two level password security--only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each
High Performance Touchpad
Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
Keyboard
Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
Full size 99 keys keyboard with integrated number pad
Wide Compatibility
Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
